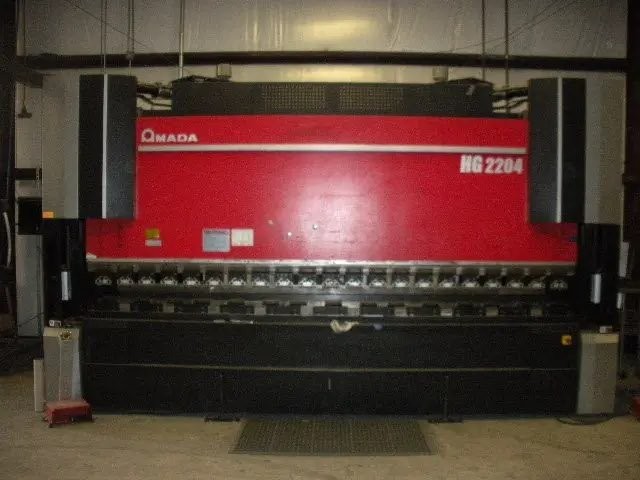

220 TON X 169" AMADA HG2204 8-AXIS CNC HYDRAULIC PRESS BRAKE
Specifications:
TONNAGE US ............................................ 243 TON
MAXIMUM BEND LENGTH ................................... 169.3"
DISTANCE BETWEEN FRAMES ............................... 148"
STROKE LENGTH ......................................... 9.8"
OPEN HEIGHT NO HOLDERS ................................ 20.5"
THROAT DEPTH .......................................... 17.7"
MACHINE STROKE ........................................ 9.8"
TABLE HEIGHT .......................................... 37.4"
APPROACH SPEED ........................................ 8.7 SEC
BENDING SPEED ......................................... 0.79 SEC
RETURN SPEED .......................................... 9.8 SEC
NUMBER OF CYLINDERS ................................... 3
HYDRAULIC FLUID CAPACITY .............................. 33 GAL
NOMINAL SUPPLY CURRENT ................................ 100A
BACK GAUGE RANGE ...................................... 27.5"
MACHINE DIMENSIONS ................................ 209" X 95" X 127"
MACHINE WEIGHT .................................... 44,100 LBS
EQUIPPED WITH:
> AMADA AMNC 3I 8-AXIS CONTROL
> BACK GAUGE, L1 & L2, Y1, Y2, Z1, Z2
> RAM D1, D2
> RAM & REPEATABILITY +- 0.00004"
> BACK GAUGE SPEED L-AXIS 1,181 IPM
> BACK GAUGE SPEED Y-AXIS 3,543 IPM
> BACK GAUGE SPEED Z-AXIS 787 IPM
> AUTO DYNAMIC CROWNING
> INDEPENDENT AC-SERVO MOTORS DRIVE HIGH-EFFICIENCY, BI-DIRECTIONAL,
HYDRAULIC PUMPS.
Extremly fast approach, bending and return speeds, Privide faster cycle,
Times and result in more parts per hour.
Unequalled ram positioning and repeatability of +-0.00004"
Programmable ram tilting and 50% off-center bending capacity allows,
For quick setup of multi-stage part bending.
Stable hydraulic oil temperature ensures consistent angular accuracy
Less hydraulic oil and fewer oil changes required
Low power consumption, Hydraulic pump motorsare active only,
When the ram is in motion
> Servo Hydraulic Drive Principle,
High precision dynamic consistent bending results,
Low noise level energy efficient
Low
