DOOSAN MYNX-6500/50,50"X,26.4"Y,24.6"Z,6000-RPM,GEARED,24-ATC,FANUC-I,NEW-2018 Our stock number: 4124

DOOSAN MYNX-6500/50,50 X,26.4 Y,24.6 Z,6000-RPM,GEARED,24-ATC,FANUC-I,NEW-2018

Click on picture below for larger version

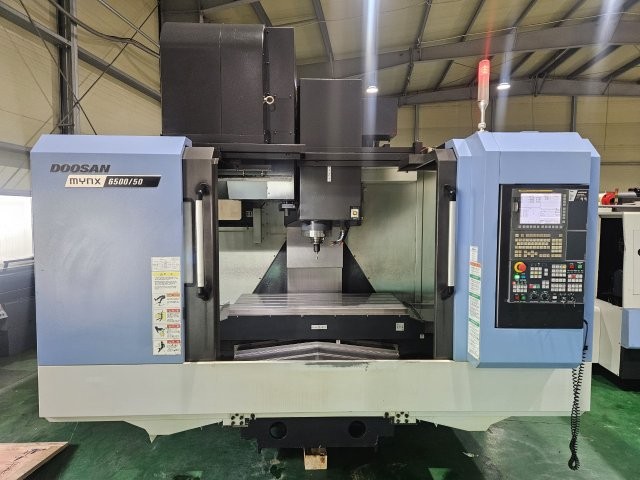

DOOSAN MYNX 6500/50 II 3-AXIS VERTICAL MACHINING CENTER

Specifications:
X-AXIS TRAVEL ....................................... 50"
Y-AXIS TRAVEL ....................................... 26.4"
Z-AXIS TRAVEL ....................................... 24.6"
DISTANCE FROM SPINDLE NOSE TO TABLE TOP ............. 7.9" ~ 32.5"
TABLE SIZE .......................................... 55.1 X 26.4"
TABLE LOADING CAPACITY .............................. 2866 LBS
SPINDLE TYPE GEAR ................................... 6,000 RPM
SPINDLE MOTOR ....................................... 25 HP
MAX SPINDLE TORQUE ................... N-M, FT-LBS .. 617/ 455.6
RAPID TRAVERSE X/Y/Z ................. 1181 / 1181 / 944.9 IPM
SPINDLE NOSE ........................................ BT 50
TOOL STORAGE ........................................ 24
MAX TOOL DIAMETER l.................................. 4.9" X 8.7" X 8.7
MAX TOOL WEIGHT ..................................... 33.1"
TOOL CHANGE TIME .................................... 2.5 SEC
POWER SOURCE ........................................ 39.4 KVA
COOLANT TANK CAPACITY ............................... 100.4 GAL
MACHINE DIMENSIONS .................... 132" X 103.5" X 119" TALL
MACHINE WEIGHT ........................ 20,200 LBS

EQUIPPED WITH:
> FANUC I SERIES 3-AXIS CNC CONTROL
> 2-STEP GEAR SPINDLE, BT-50
> COOLANT THROUGH THE SPINDLE 20 BAR
> SPINDLE OIL CHILLER
> CHIP CONVEYOR
