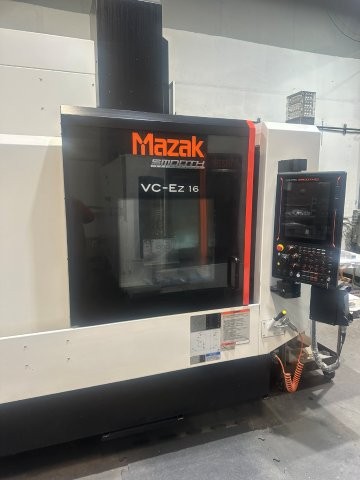

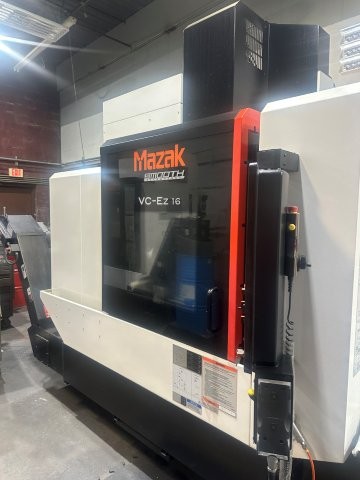

MAZAK VC-EZ16 3-AXIS VERTICAL MACHINING CENTER
Specifications:
TABLE SIZE ..................................... 37.40" X 14.17"
TABLE WEIGHT CAPACITY .......................... 1543 LBS
SPINDLE FACE TO TABLE SURFACE .................. 3.93" MIN/ 24.01" MAX
RAPID TRAVERSE ................................. 1417 IPM
SPINDLE TAPER .................................. CAT-40
MAXIMUM SPEED .................................. 12000 RPM
TORQUE FT-LBS/NM ............................... 70.4 FT-LB / 95.5 NM
MAGAZINE NUMBER OF TOOLS ....................... 30
FEED AXIS X/Y/Z ................................ 30"/16.14"Y/20.08"Z
MAXIMUM TOOL LENGTH ............................ 13.78"
MAXIMUM TOOL WEIGHT ............................ 17.64 LBS
TOOL CHANGE TIME ............................... 2.2 SEC
MACHINE DIMENSIONS ............................. 101.7 D X 95.8" W X 111.26" H
MACHINE WEIGHT ................................. 10,582 LBS
EQUIPPED WITH:
> MAZATROL SMOOTH EZ CONTROL
> SYNCHRONIZED TAPPING

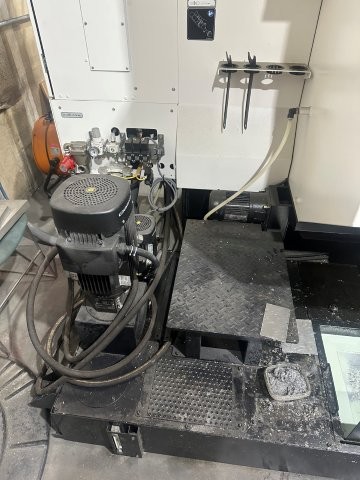

> 213 PSI HI PRESSURE COOLANT THROUGH SPINDLE, FLOOD COOLANT

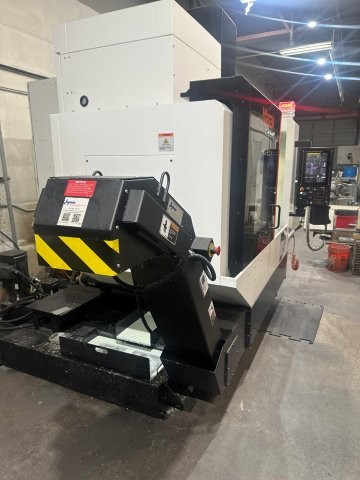

> CHIP CONVEYOR LEFT SIDE DISPOSAL
> DUAL OPTICAL PROBING PACKAGE OMP60/OTS

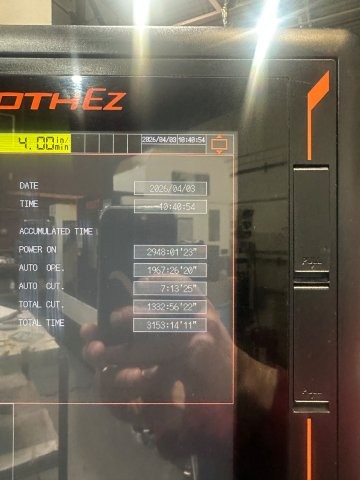

WITH 1349 CUTTING TIME
