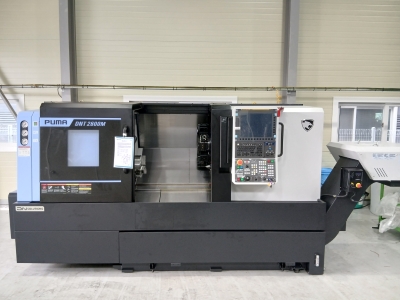

DOOSAN DNT2600M 3-AXIS TURNING CENTER

Specifications:
CHUCK SIZE .......................................... 10"
MAXIMUM TURNING DIAMETER ............................ 15"
MAXIMUM TURNING LENGTH .............................. 24"
X-AXIS TRAVEL ....................................... 10"
Z-AXIS TRAVEL ....................................... 26.77
RAPID TRAVERSE X/Z .................................. 1181/1181 IPM
SPINDLE SPEED ....................................... 3500 RPM
SPINDLE MOTOR ....................................... 35 HP
MAX SPINDLE TORQUE .................................. 386 N-m
TURRET NO OF TOOL STATION ........................... 12 EACH
ROTARY TOOL RPM ..................................... 5,000 RPM
MACHINE DIMENSIONS ............................. 134" X 75" X 80"
MACHINE WEIGHT ................................. 12,456 LBS

EQUIPPED WITH:
> DOOSAN FANUC I SERIES
> TOOL SETTER
> CHIP CONVEYOR
> COOLANT PUMP HIGH PRESSURE 2.2 KW
> HYDRAULIC TAILSTOCK TOW AWAY
