Click on picture below for larger version

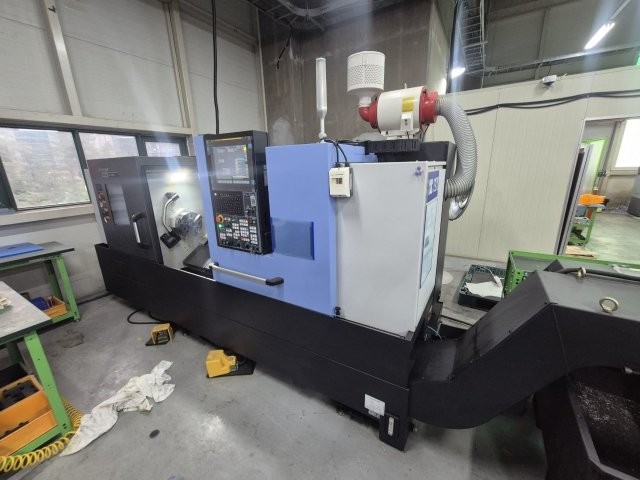

DOOSAN PUMA GT2100M 3-AXIS TURNING CENTER

SWING OVER BED ..................................... 23.6"
SWING OVER SADDLE .................................. 15.4"
MAX TURNING DIAMETER ............................... 11.8"
MAX TURNING LENGTH ................................. 19.7"

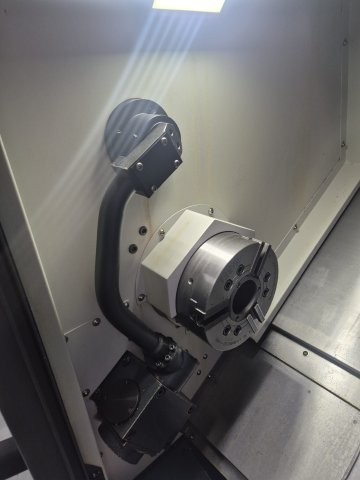

CHUCK SIZE ......................................... 8"
BAR WORKING CAPACITY ............................... 2.6"
X-AXIS TRAVEL ............................... ...... 9.1"
Z-AXIS TRAVEL ...................................... 22.8"
RAPID TRAVERSE X/Z ................................. 944.9/1181.1 IPM
C-AXIS ............................................. 787.4
MAX SPINDL SPEED ................................... 4500 RPM
SPINDLE NOSE ....................................... A2-6
SPINDLE THROUGH HOLE ............................... 3"
MIN SPINDLE INDEXING ANGLE C-AXIS .................. 0.001 DEG

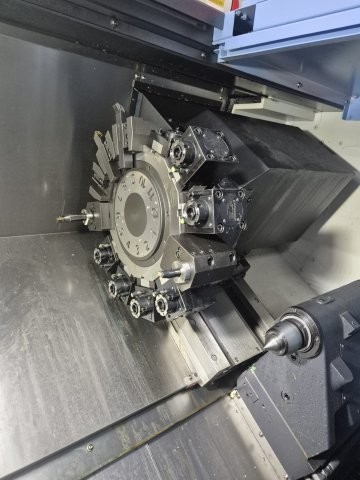

NO OF TOOL STATIONS ................................ 12
OD TOOL SIZE ....................................... 1" X 1"
MAX BORING BAR SIZE ................................ 1.6"
MAX ROTARY TOOL SPEED .............................. 5000 RPM
QUILL DIAMETER ..................................... 3.1"
QUILL BORE TAPER .................................... MT#4
QUILL TRAVEL ........................................ 3.1"
MAIN SPINDLE MOTOR .................................. 20 HP
ROTARY TOOL MOTOR ................................... 7.4 HP
POWER SOURCE ........................................ 30.43 HP
MACHINE DIMENSIONS ........................... 66.9" X 115.7" X 64.1"
MACHINE WEIGHT ............................... 8200 LBS

EQUIPPED WITH:

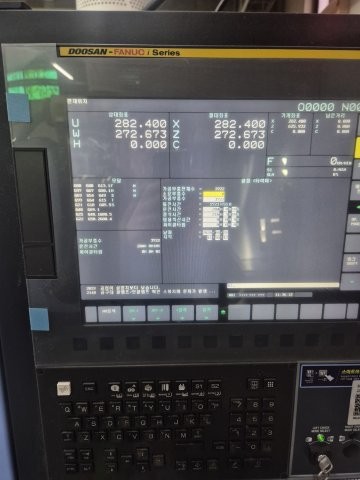

> DOOSAN FANUC I SERIES
> TOOL SETTER , COOLANT SYSTEM
> CHIP CONVEYOR
> 4 LIVE TOOL HOLDER

WITH UNDER 300 CUTTING TIME
