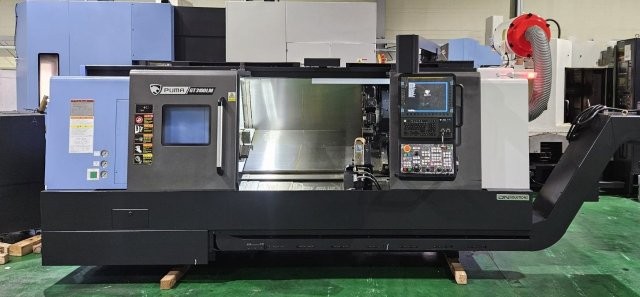

DOOSAN PUMA GT3100LM 3-AXIS TURNING CENTER


SPECIFICATIONS:
CHUCK SIZE .......................................... 12"
SWING OVER BED ...................................... 28.3"
SWING OVER SADDLE ................................... 23.2"
MAX TURNING DIAMETER ................................ 18.9"
MAX TURNING LENGTH .................................. 50.2"
BAR WORKING DIAMETER ................................ 4"
X-AXIS TRAVEL ....................................... 10.2"
Z-AXIS TRAVEL ....................................... 53.1"
C-AXIS MIN SPINDLE INDEXING ANGLE ................... 0.001
RAPID TRAVERSE X/Z .................................. 945/1181 IPM
MAX SPINDLE SPEED ................................... 2800 RPM
SPINDLE TORQUE ........................ N-M LBF-FT 828.8
MAIN SPINDLE MOTOR .................................. 35 HP
SPINDLE NOSE ........................................ A2-11
SPINDLE THROUGH HOLE DIAMETER ....................... 4.5"
TOOL STATIONS ....................................... 24 BMT-65P
ROTARY TOOL SPEED ................................... 5000 RPM
ROTARY TOOL MOTOR POWER ............................. 10/7.5 HP
OD TOOL SIZE ........................................ 1" X 1"
MAX BORING BAR SIZE ................................. 2"
TURRET INDEXING TIME 1 STATION SWIVEL ............... 0.15 SEC
TAILSTOCK TRAVEL PROGRAMMABLE ....................... 45.3"
QUILL DIAMETER ...................................... 3.9"
QUILL TRAVEL ........................................ 3.9"
QUILL BORE TAPER .................................... MT#5 LIVE
ELECTRIC POWER SUPPLY ............................... 36MKVA
MACHINE DIMENSIONS .................................. 184" X 81" X 95"
MACHINE WEIGHT ...................................... 13,752 LBS

EQUIPPED WITH:
> DOOSAN FANUC I HMI EZI MACHINING CYCLE, TOOL LOAD MONITOR
PART PROGRAM STORAGE 5120 M, 2MB, ETHERNET EMBEDDED
> CHIP CONVEYOR HINGE TYPE,C OOLANT PUMP 0.4 KW,0.15 MPA-60
> SMW DUO BLOCK PROGRAMMABLE STEADY REST SLU-3.1 ZS,20-165 MM
> MIST COLLECTOR, (4) LIVE MILLING TOOL HOLDERS RADIAL, AXIAL
> TOOL PRESETTER
