Click on picture below for larger version

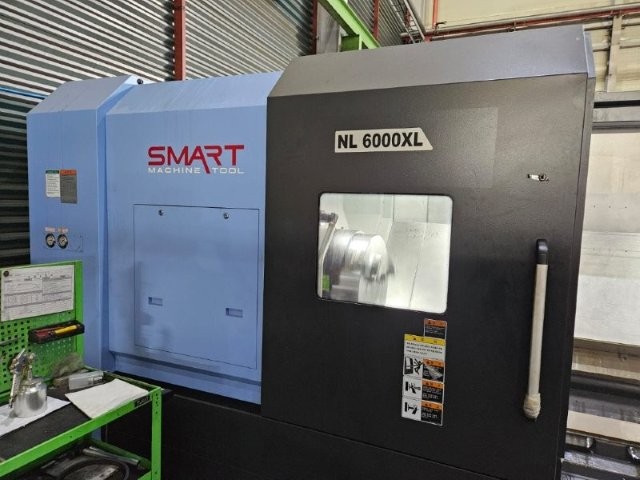

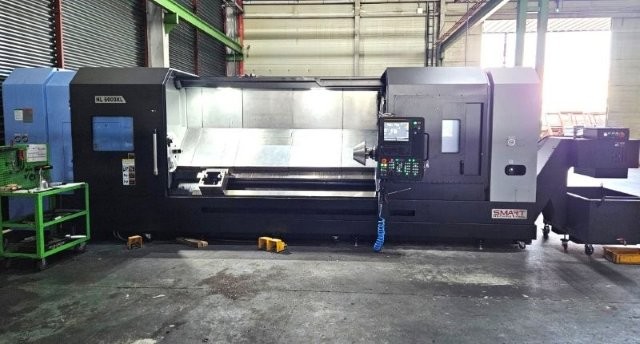

SMART NL6000XLM (KOREAN DESIGN) 3-AXIS TURNING CENTER

Specifications:
CHUCK SIZE .................................... 24"
MAX SWING OVER THE BED ........................ 40.55"
MAX TURNING DIAMETER .......................... 35.43"
MAX TURNING LENGTH ............................ 125.98"
SPINDLE NOSE .................................. A1-15
SPINDLE MOTOR ................................. 73/50 HP
MAX TORQUE .................................... 5,143 NM
SPINDLE SPEED ................................. 1200 RPM
BAR CAPACITY .................................. 6.52"
X-AXIS RAPID TRAVERSE RATE .................... 630 IPM
Z-AXIS RAPID TRAVERSE RATE .................... 394 IPM

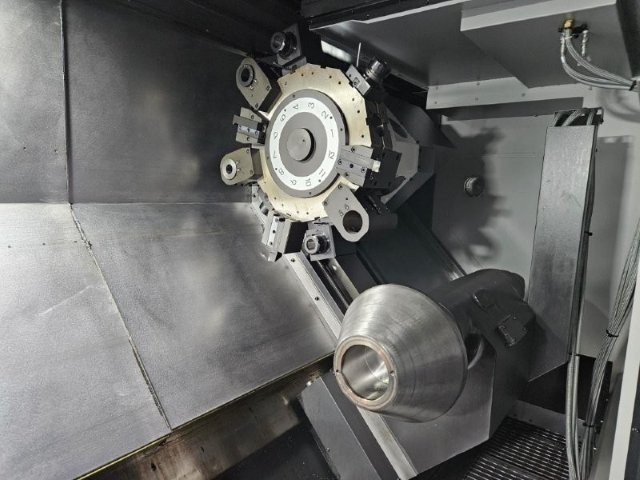

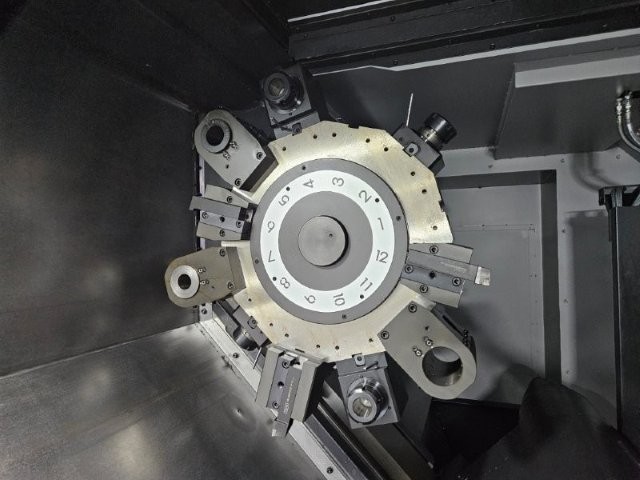

TURRET CAPACITY ............................... 12 STATIONS
OD TOOL SIZE .................................. 1.25"
BORING BAR SIZE ............................... 3"
INDEXING TIME ................................. 0.35 SEC/STEP
MILL TURRET HOLDER ............................ BMT 85
MAX TOOL SPINDLE .............................. 3,000 RPM
MAX TOOL MOTOR POWER .......................... 20.1 HP
TAILSTOCK QUILL DIAMETER ...................... 7.09"
QUILL TRAVEL .................................. 5.91"
TAPER ................................ MT6 BUILT-IN LIVE CENTER

EQUIPPED WITHz:
> FANUC 0IT 3-AXIS CNC CONTROL
> 2 SPEED IN-LINE GEARBOX, PROVIDE POWERFUL SPINDLE POWER AND TORQUE
V-PULLEY BELT FOR HIGH POWER TRANSMISSION CAPACITY, PK BELT FOR LOW,
VIBRATION AND NOISE EVEN AT HIGH SPEED.
> PROGRAMMABLE TAILSTOCK BODY & QUILL
> TOOL PRESETTER REDUCES SET-UP TIME BY MINIMIZE THE NEED FOR MANUAL SKIN CUT

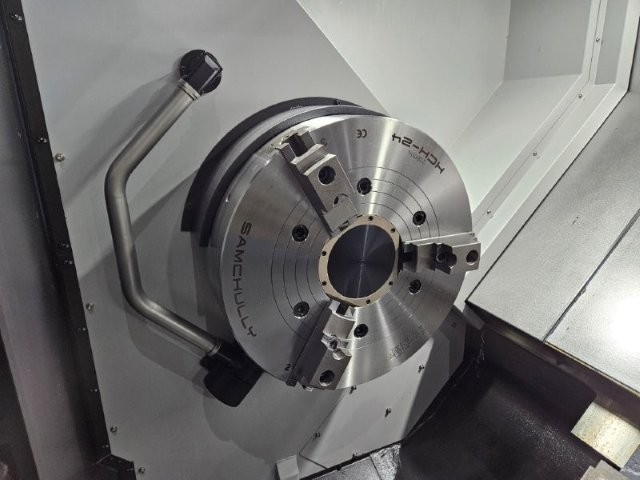

> 24" SAMCHULLY 3-JAW HYDRAULIC CHUCK
> HEAVY DUTY BOX WAYS CONSTRUCTIONS DESIGN
> KOREAN BULT
> CHIP CONVEYOR, COOLANT SYSTEM

LOW HOURS
