BLANCHARD 54-100HD GEARED,100"MAGNETIC CHUCK,54"WHEEL,NEW-1981 Our stock number: 4153

BLANCHARD 54-100HD GEARED,100 MAGNETIC CHUCK,54 WHEEL,NEW-1981

Click on picture below for larger version

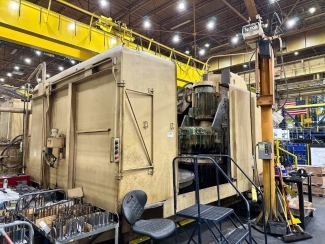

BLANCHARD 54-100HD VERTICAL ROTARY SURFACE GRINDER
NEW: 1981

Specifications:

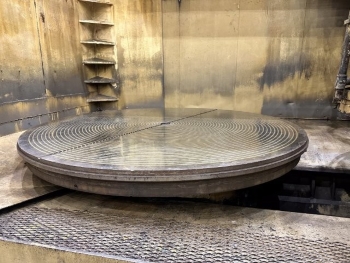

MAGNETIC CHUCK DIAMETER ................................ 100"
COMCENTRIC POLE SPACING ................................ 1-1/16"
SWING CAPACITY INSIDE WATERGUARDS ...................... 128"
MAXIMUM UNBALACED WORK LOAD ON CHUCK ................... 22,000 LBS
CHUCK ROTATION SPEEDS > ....................... 2.6, 4.1, 6.6, 10.2 RPM
GRINDING WHEEL SIZE (CDT SEGMENTED CHUCK ...... 24"
NUMBER OF CDTXL SEGMENTS ...................... 12
GRINDING WHEEL SPEEDS ......................... 268 RPM
VERTICAL RANGE UNDER THE NEW CTXL SEGMENTS ............. 60"
MAXIMUM DOWNFEED BEFORE FEED TRIPS ..................... 15.24"
POWER DOWNFEED RATES - IPM >............................ .008 TO .096"
MOTOR - GRINDING WHEEL ................................. 250 HP
CHUCK ROTATION MOTOR ................................... 45 LB/FT TORQUE
HEAD TRAVERSE MOTOR .................................... 35 LB/FT TORQUE
ELECTRIC POWER REQUIREMENTS ............................ 250 HP, 300 KVA

EQUIPPED WITH:

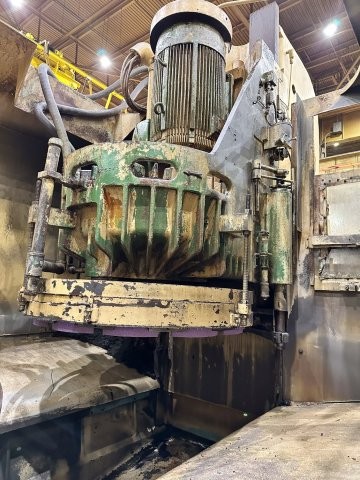

> 250 HORSEPOWER, GEARED HEAD, 60" VERTICAL TRAVEL
> HYDROFLOW WITH MAGNETIC SEPARATOR COOLANT SYSTEM
> NEUTROFIER 3845 WATTS
> 460 VOLTS

Blanchard grinding is often used for faster stock removal and producing a
consistent flat surface across larger areas. It is a strong choice when the
project requires efficiency, material removal, and a recognizable rotary
crosshatch finish.
