Click on picture below for larger version

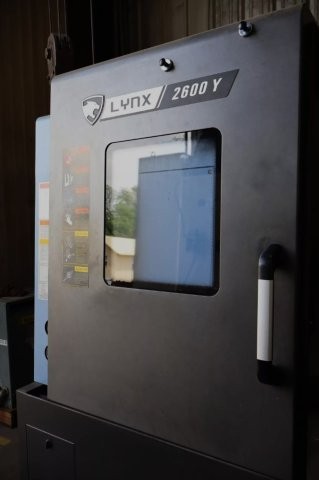

DOOSAN LYNX2600Y 3-AXIS TURNING CENTER

Specifications:
CHUCK SIZE ..................................... 10"
SPINDLE NOSE ................................... A2-8
THROUGH HOLE DIAMETER .......................... 3.6"
SWING OVER BED ................................. 24.8"
SWING OVER SADDLE .............................. 18.1"
MAX TURNING DIAMETER ........................... 15"
MAX TURNING LENGTH ............................. 24"
X-AXIS TRAVEL .................................. 10"
Y-AXIS TRAVEL .................................. 4"
Z-AXIS TRAVEL .................................. 27"
RAPID TRAVERSE X/Y/Z ........................... 1181/393.7/1181 IPM
MAIN SPINDLE SPEED ............................. 3500 RPM
MIN. SPINDLE INDEXING ANGLE C-AXIS ............. 0.001
MAIN SPINDLE POWER ............................. 20 HP
MAX SPINDLE TORQUE FOR TURNING ................. 297.4 n-m

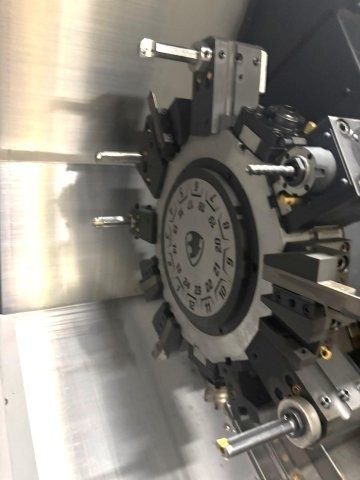

NO. OF TOOL STATIONS ........................... 24 OPTION
TURRET INDEXING TIME 1 STATION SWIVEL .......... 0.15
MILLING COLLECT ................................ BMT55P
BORING BAR DIAMETER ............................ 1.6"
ROTARY TOOL RPM ................................ 5,000 RPM
ROTARY TOOL TORQUE ............................. 42 nm 31 ft-lbs
ROTARY TOOL POWER .............................. 7 JP

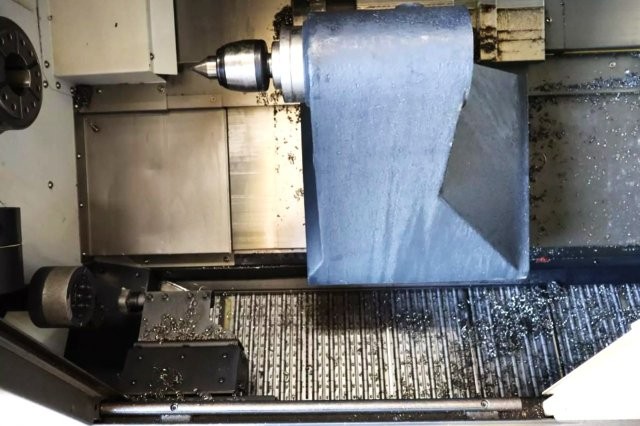

TAILSTOCK TRAVEL ............................... 27.5"
TAILSTOCK CENTER ............................... MT#4
MACHINE DIMENSIONS .......................... 135" X 82" X 76"
MACHINE WEIGHT .............................. 12,677 LBS

EQUIPPED WITH:

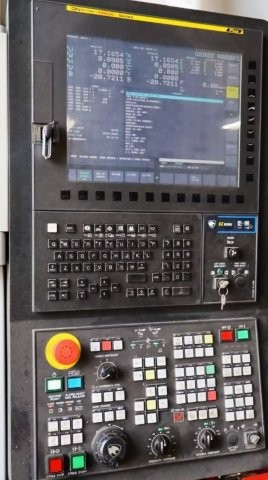

> DOOSAN FANUC I SERIES 3-AXIS CNC CONTROL
> TOOL PRESETTER, PARTS CATCHER
> LNS CHIP CONVEYOR

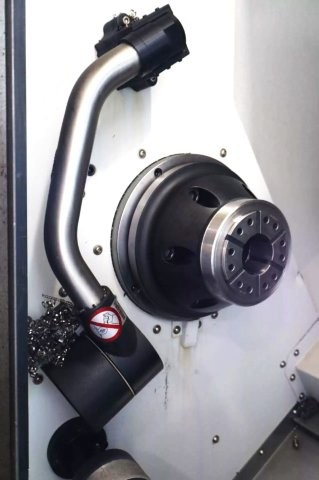

> ROYAL COLLECT CLOSER

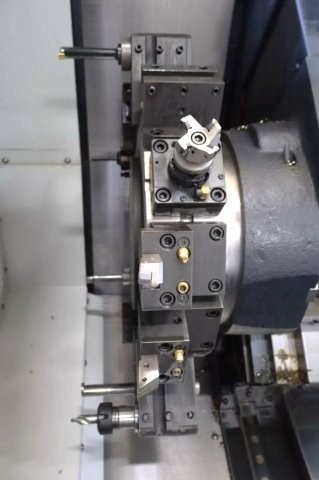

> 3- LIVE MILLING TOOL HOLDERS
