NAKAMURA TOME SC300II,10"CHUCK,LIVE-MILLING-Y-AXIS,3.50"BAR,FANUC-NEW-2023 Our stock number: 4057

NAKAMURA TOME SC300II,10 CHUCK,LIVE-MILLING-Y-AXIS,3.50 BAR,FANUC-NEW-2023

Click on picture below for larger version

NAKAMURA TOME SC300II MULTITASKING-PRECISION TURNING CENTER
LIVE-MILLING, C-AXIS, Y-AXIS
Specifications:
MAX. TURNING DIAMETER ................................. 14.1732"
STANDARD TURNING DIAMETER ............................. 11.0236"
DISTANCE BETWEEN CENTER ............................... 28"
MAX TURNING LENGTH .................................... 23.622"
BAR CAPACITY .......................................... 3.50"
CHUCK SIZE ............................................ 10"
SLIDE TRAVEL X-AXIS ................................... 9.13"
SLIDE TRAVEL Z-AXIS ................................... 25"
SLIDE TRAVEL Y-AXIS ................................... 2.3622" +-
RAPID TRAVERSE X/Z/Y ....................... 984 IPM/ 1181 IPM / 492 IPM
SPINDLE SPINDLE SPEED ................................. 3500 RPM
SPINDLE SPEED RANGE ................................... STEPLESS
SPINDLE NOSE .......................................... A2-8
HOLE THROUGH DRAW TUBE ................................ 3.54"
C-AXIS INPUT INCREMENT ................................ 0.001 DEG
RAPID INDEX SPEED ..................................... 200 MIN
CUTTING FEEDRATE ...................................... 1-4800/MIN
C-AXIS CONNECTING TIME ................................ 1.5 SEC.

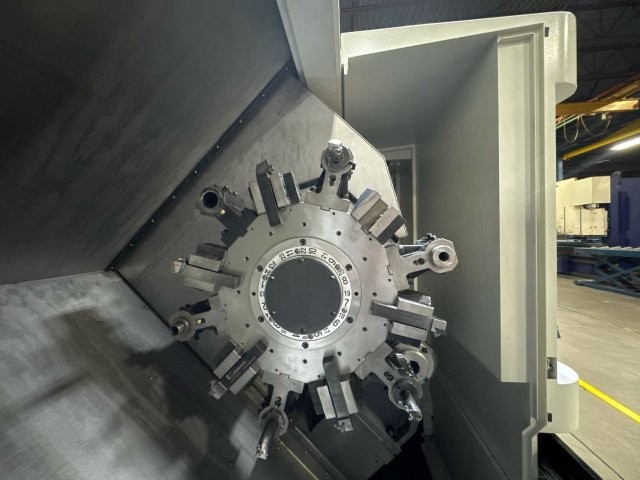

TURRET TYPE OF HEAD ........... DODECAGONAL DRUM TURRET 24 STATIONS
NUMBER OF DRIVEN TOOL STATIONS .................. 12
TOOL SIZE SQUARE / ROUND ........................ 1.00" / 2.00"

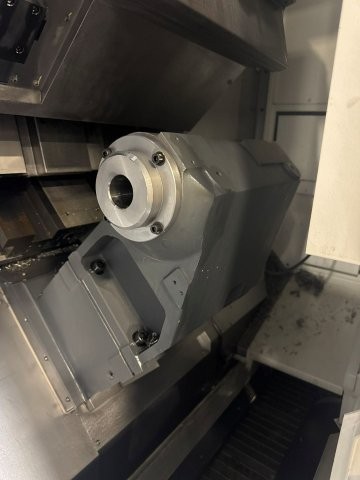

TAILSTOCK DRIVING METHODS ....................... NC TYPE
TAILSTOCK POSITIONING STROKE .................... 19.685"
TAILSTOCK FORCE ................................. 2.5 ~ 6.5 KN
QUILL DIAMETER .................................. 3.54"
TAILSTOCK TAPER SIZE ............................ MT-5
QUILL SIZE ...................................... 3.93"
LIVE MILLING SPINDLE SPEED ...................... 6,000 RPM
COLLECT DIAMETER FOR DRIVEN TOOLS ............... 0.984252"
NUMBER OF DRIVEN TOOL STATIONS .................. 12
ROTARY TOOL SHANK ............................... 1.00"
MAIN SPINDLE DRIVE MOTOR ........................ 30 HP
ROTARY TOOL SPINDLE DRIVE MOTOR ................. 10 HP
FLOOR SPACE ..................................... 157" X 83.50" X 91" TALL
MACHINE WEIGHT .................................. 20,000 LBS
POWER SUPPLY .................................... 34.2 KVA

EQUIPPED WITH:

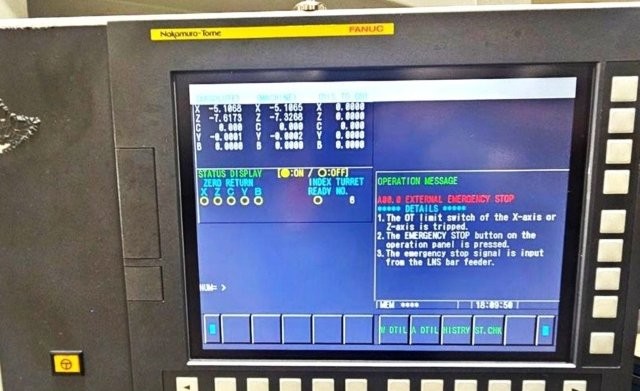

> NAKAMURA TOME FANUC NT NURSE 4-AXES CONTROL
> LNS CHIPBLASTER, ROYAL MIST COLLECTOR, BAR FEEDER INTERFACE
> HENNING CHIP CONVEYOR, PARTS CATCHER, RENISHAW TOOL PRESETTER

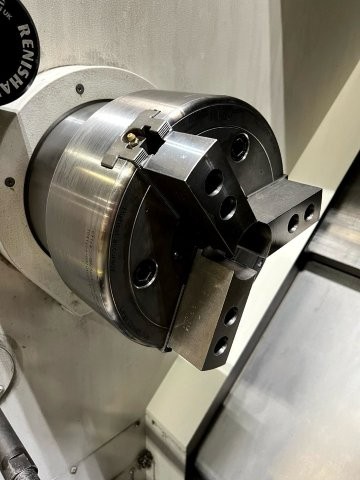

> 10" KITAGAWA BR10 HYDRAULIC CHUCK, ROYAL COLLECT CHUCK
