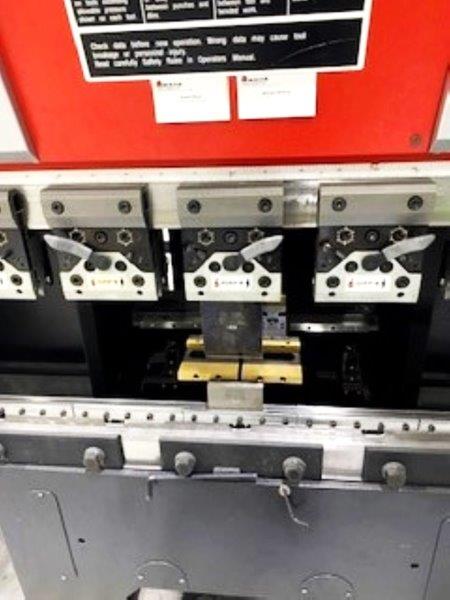

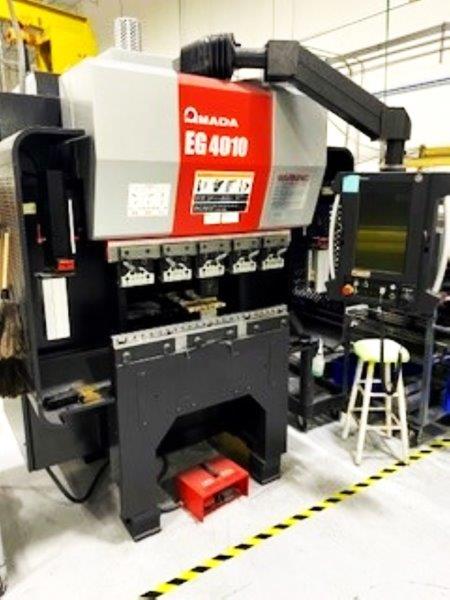

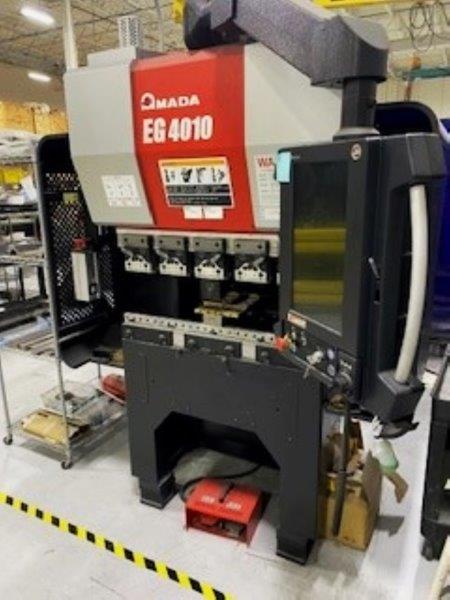

44 TON X 41.3" AMADA EG4010 HIGH PRECISION
DUAL SERVO PRESS BRAKE

Specifications:
TONNAGE ........................................ 44 TON
BED LENGTH ..................................... 41.3"
DISTANCE BETWEEN FRAMES ........................ 27.9"
STROKE LENGTH .................................. 5.9"
OPEN HEIGHT WITH PHL ........................... 16.5"
NUMBER OF DRIVES ............................... 2
APPROACH SPEED ................................. 8.7" / SEC
BEND SPEED ..................................... 1" SEC
RETURN SPEED ................................... 8.7" SEC
MOTOR .......................................... 1.8 + 0.85 KW X 2
D AXIS TILT .................................... +- 0.08"
CONNECTED LOAD ................................. 8 AMP
POWER REQUIREMENT .............................. 2.8 KVA AT 200
VAC ............................................ +- 10%
MACHINE LENGTH ................................. 70"
MACHINE WIDTH .................................. 49.4"
MACHINE HEIGHT ................................. 93.3"
MACHINE WEIGHT ................................. 5,950 LBS

EQUIPPED WITH:
> AMADAN AMNC 3I
> BACK GAUGE STROKE Z-AXIS 2" TO 8"
> BACK GAUGE STROKE L-AXIS 2,362 / MIN
> BACK GAUGE STROKE Y-AXIS 2,362" / MIN
> BACK GAUGE STROKE Z-AXIS 787" MIN

Amadas latest control features an easy-to use Graphical interface,
interface that minimizes the learning curve and maximizes machine productivity
> 18.5" touchscreen display offers multiple modes of data entry, Angle Depth,
2D and 3D ) to maximize programming flexibility
> Amada's SDD software database provides program storage on a local server
