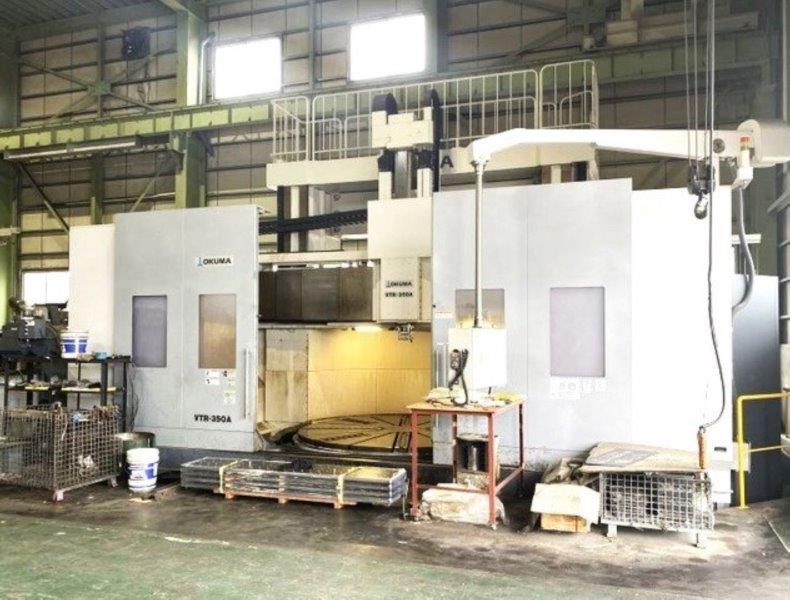

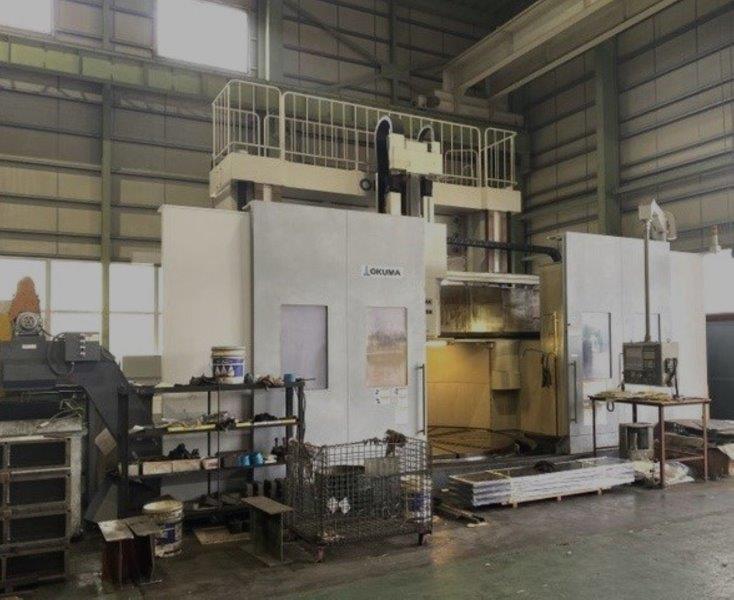

118" OKUMA VTR-350A VERTICAL TURNING CENTER
WITH LIVE MILLING, C-AXIS

Specifications:
MAX SWING .................................... 137.79"
MAX TURNING LENGTH ........................... 94.48"
MAX TABLE LOAD ............................... 44,000 LBS
FLOOR TO TABLE TOP ........................... 46.85"

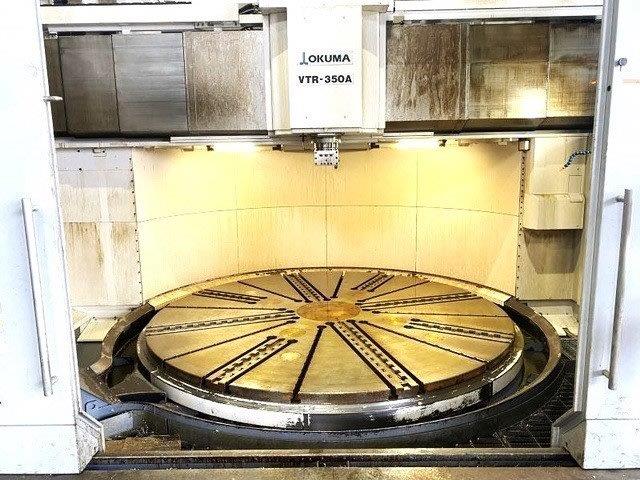

TABLE DIAMETER ............................... 118.11"
X-AXIS TRAVEL ................................ 149.60
Z-AXIS TRAVEL ................................ 59.06"
W-AXIS TRAVEL ................................ 59.08"
C-AXIS TRAVEL ................................ 0.001 DEG
TABLE TOP TO MILLING TOOL SPINDLE NOSE ....... 103.35"
TABLE TURNING SPINDLE ........................ 1 - 160 RPM
TURNING SPINDLE MOTOR ........................ 75 HP
SPEED RANGES ................................. 2
TABLE TORQUE ................................. 58,000/46,400 N-m
MILLING TOOL SPINDLE SPEEDS .................. 45-3000 RPM
ROTARY TOOL SPINDLE MOTOR .................... 25 HP

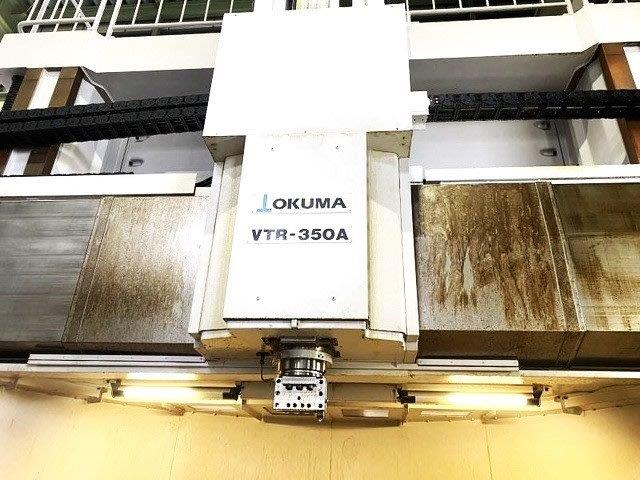

MILLING SPINDLE NOSE ......................... BT-50 BIG PLUS
TURNING TOOL ................................. 32 X 32 MM
MAGAZINE CAPACITY ............................ 36 POSITIONS
MACHINE SIZE ..................... 339" X 211" X 285" TALL
MACHINE WEIGHT ................... 94,600 LBS

EQUIPPED WITH:

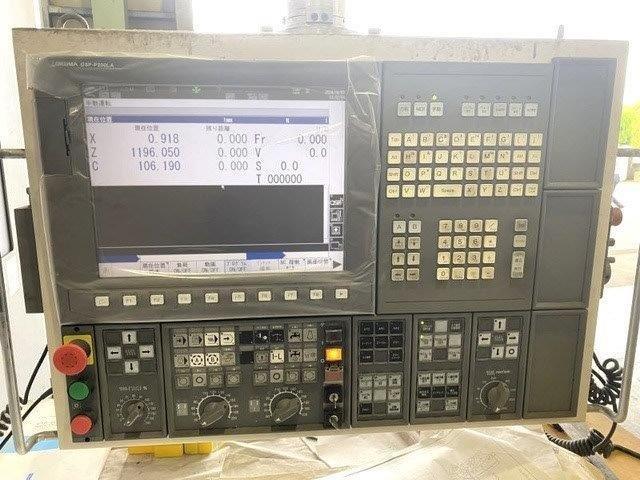

> OKUMA OSP-P2001A AXES SIMULTANEOUS CONTROLLED, X/Z/C
> CHIP CONVEYOR LEFT SIDE DISCHARGE HINGE TYPE
> HIGH COLUMN EXTRA HIGHT> 800MM, X-AXIS TRAVEL EXTENSION> 3850MM
Y-AXIS TRAVEL EXTENSION> 1500MM, W-AXIS TRAVEL EXTENSION> 1500MM
> W-AXIS THROUGH SPINDLE COOLANT, IN-MACHINE WORKPIECE MEASUREMENT
