HYUNDAI WIA L400C,15"CHUCK,46.1"cc,4.6"BAR,2000-RPM,FANUC-I,NEW-2020 Our stock number: 3971

HYUNDAI WIA L400C,15 CHUCK,46.1 cc,4.6 BAR,2000-RPM,FANUC-I,NEW-2020

Click on picture below for larger version

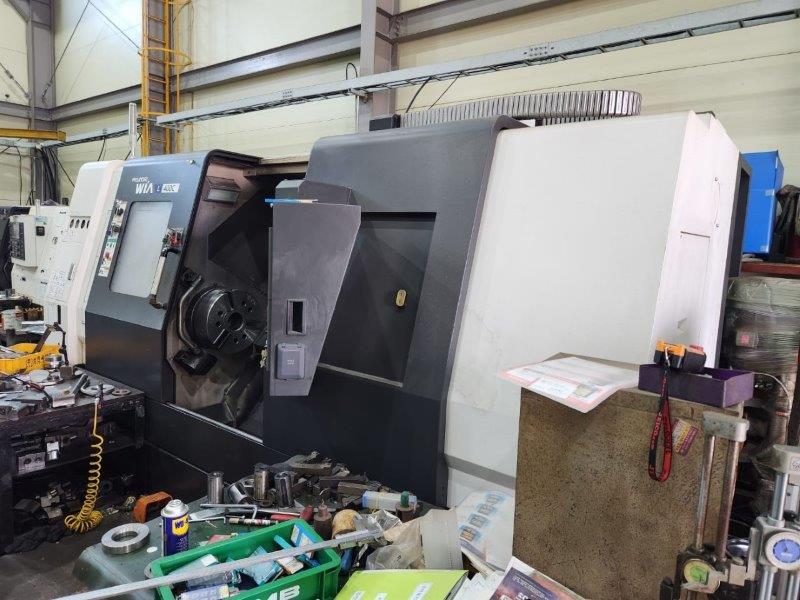

HYUNDAI WIA L400C 2-AXIS TURNING CENTER

Specifications:

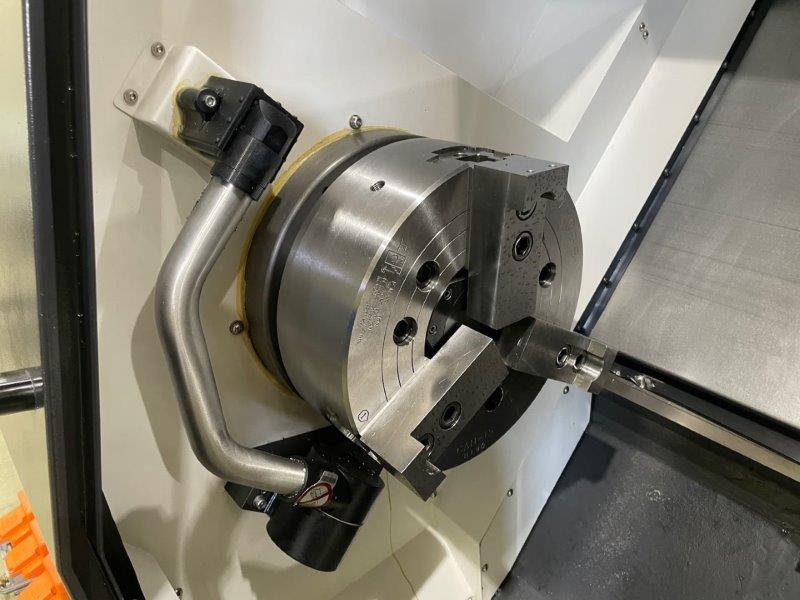

CHUCK SIZE .............................................. 15"
MAX TURNING DIAMETER .................................... 24.8"
MAX TURNING LENGTH ...................................... 46.1"
BAR CAPACITY ............................................ 4.6"
SPINDLE SPEED ........................................... 2,000 RPM
SPINDLE NOSE ............................................ A2-11
SPINDLE MOTOR GEAR BOX ATTACHED ......................... 35 HP

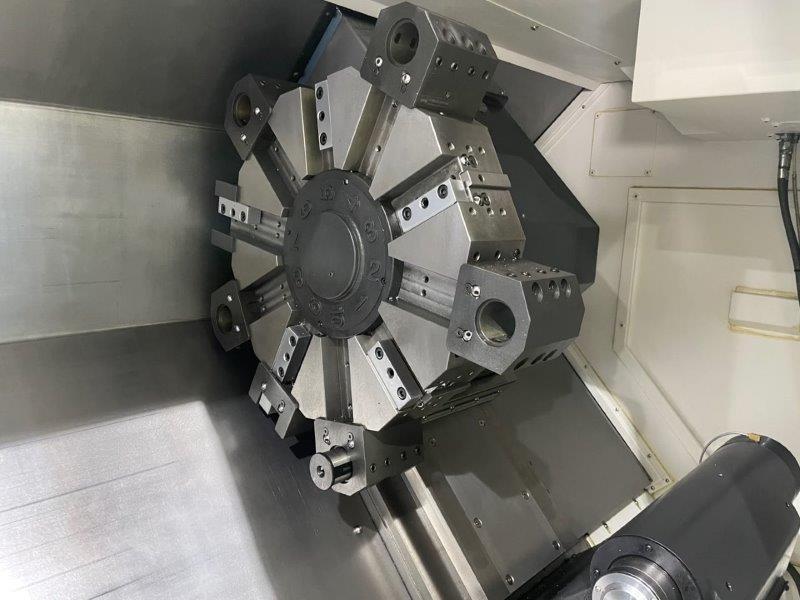

TURRET .................................................. 12 TOOLS
TOOL SIZE ............................................... 1.2" X 2"

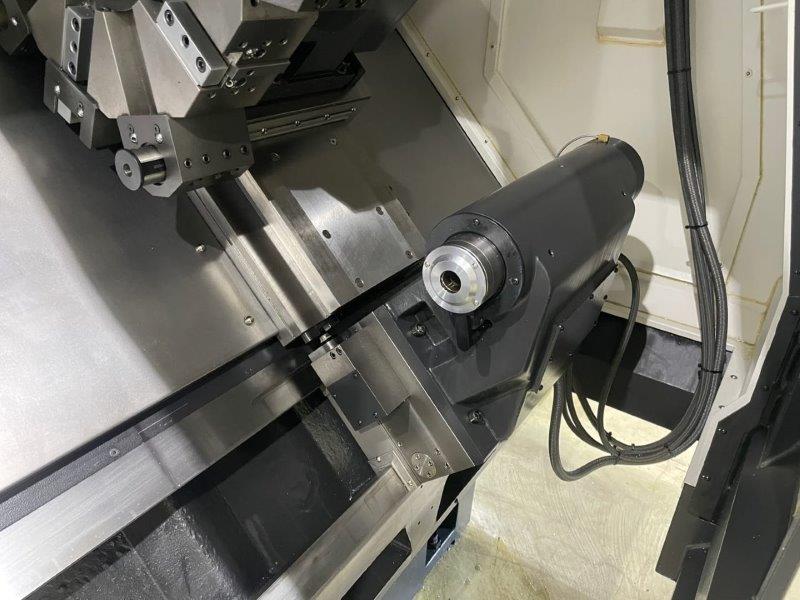

PROGRAMMABLE TAILSTOCK .................................. MT# 5
RAPID TRAVERSE X/Z ...................................... 787 / 984 IPM
MACHINE WEIGHT .......................................... 21,250 LBS

EQUIPPED WITH:
> HYUNDAI WIA FANUC I SERIES
> SOLID BOX WAY CONSTRUCTION
> AUTO TOOL SETTER
> CHIP AUGER
> COOLANT PUMPS
