DOOSAN PUMA DNT 2100M,8"CHUCK,LIVE MILLING,C-AXIS,PARTS-CATCHER,FANUC-I-PLUS, Our stock number: 3950

DOOSAN PUMA DNT 2100M,8 CHUCK,LIVE MILLING,C-AXIS,PARTS-CATCHER,FANUC-I-PLUS,

Click on picture below for larger version

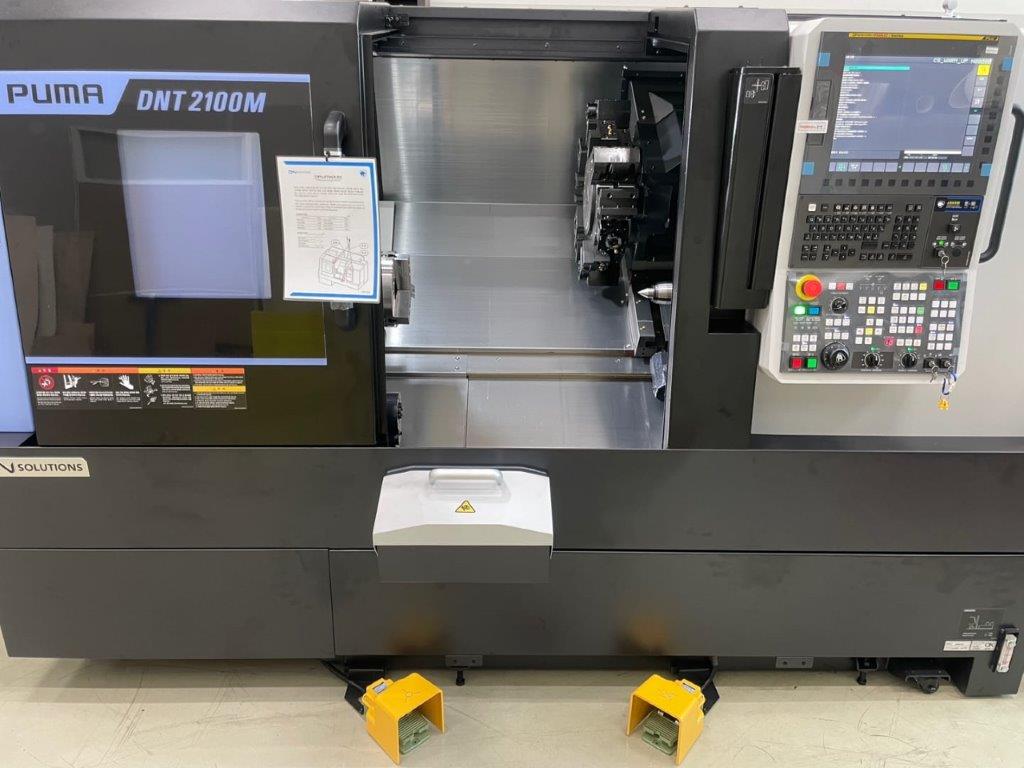

DOOSAN PUMA DNT2100M 3-AXIS TURNING CENTER

Specifications:

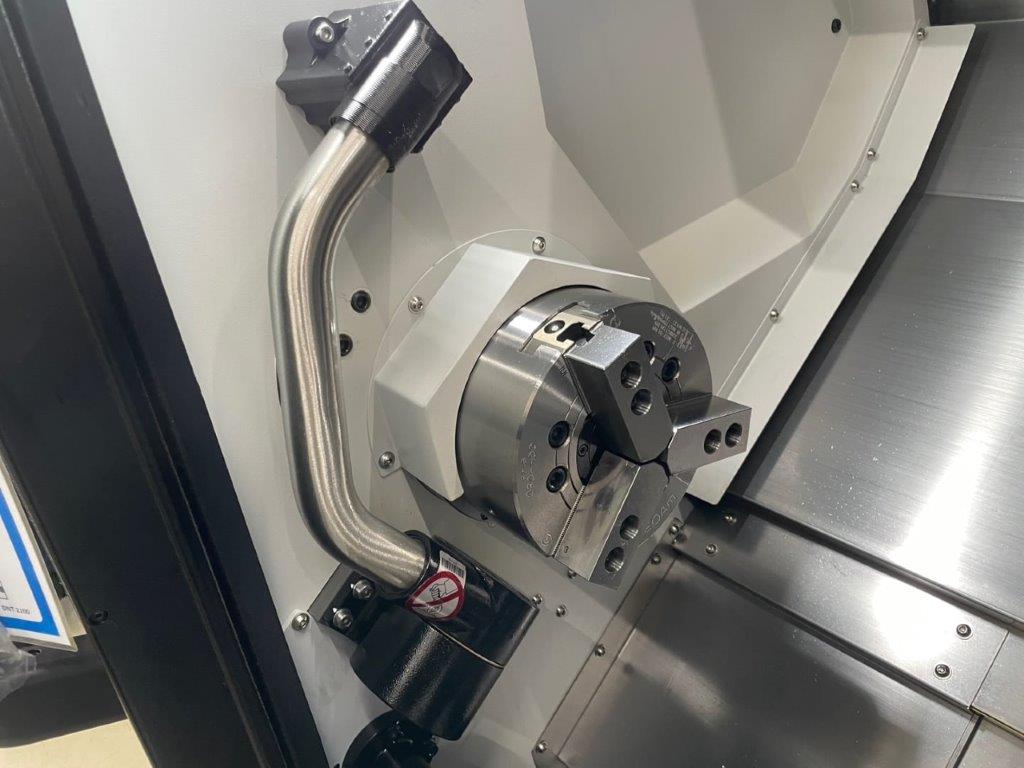

CHUCK SIZE .................................... 8"
MAX TURNING DIAMETER .......................... 12.6"
MAX TURNING LENGTH ............................ 20.2"
THROUGH HOLE SPINDLE DIAMETER ................. 2.68"
X-AXIS TRAVEL ................................. 9.1"
Z-AXIS TRAVEL ................................. 22.8"
RAPID TRAVERSE X/Z ........................... 945/1181 IPM
SPINDLE SPEEDS ............................... 4500 RPM
SPINDLE MOTOR POWER .......................... 25 HP
TORQUE ....................................... 328 Nm 242 ft-lbs
TURRET SHANK ................................. 3/4"
TURRET STATIONS .............................. 12
BORING BAR DIAMETER .......................... 1.25"
MACHINE DIMENSIONS ........................... 116" X 70" X 66"
MACHINE WEIGHT ............................... 8,370 LBS

EQUIPPED WITH:
> DOOSAN FANUC I PLUS CNC CONTROL
> HEAVY DUTY BOX GUIDEWAY
> TOOL PRESETTER, PARTS CATCHER
> c-AXIS, LIVE MILLING
> CHIP CONVEYOR, COOLANT SYSTEM

The best turning center for accurate manufacturing is the DN Solutions PUMA
GT/DNT CNC machine. This machine provides production accuracy and efficiency
that are unmatched thanks to its cutting-edge features and cutting-edge

technology.
