DMG MORI NTX-3000/3000,27.61"SWING,123"CC,TURN-MILL-SPINDLE,20KRPM,CELOS,2022 Our stock number: 3942

DMG MORI NTX-3000/3000,27.61 SWING,123 CC,TURN-MILL-SPINDLE,20KRPM,CELOS,2022

Click on picture below for larger version

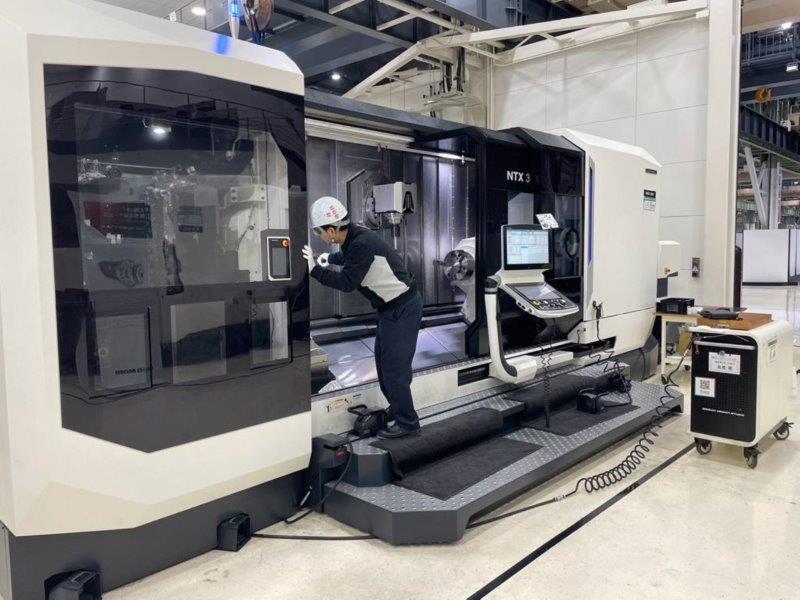

DMG MORI NTX3000/3000 INTEGRATED MILL-TURN CENTER

Specifications:
SWING OVER CROSS SLIDE .................................. 27.6"
MAX TURNING DIAMETER .................................... 27.6"
MAX TURNING LENGTH ...................................... 118.8"
BAR WORK CAPACITY ....................................... 4"/3.1"
X1-AXIS TRAVEL TURN-MILL SPINDLE ........................ 26.5"
Y1-AXIS TURN-MILL SPINDLE ............................... 11.8"
Z1-AXIS TURN-MILL SPINDLE FOR ATC ....................... 120.5"
B-AXIS TURN MILL SPINDLE ................................ 240/+-120 DEG
LEFT SPINDLE MAX SPINDLE SPEED .......................... 3000 RPM
RIGHT SPINDLE MAX SPINDLE SPEED ......................... 4000 RPM
TURN MILL SPINDLE TURRET 1> B-AXIS MIN INDEXING ......... 0.0001 DEG

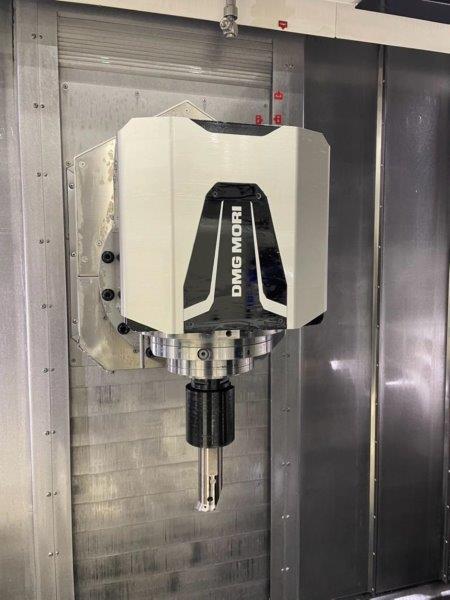

TURN MILL SPINDLE MAX SPEED ............................. 20,000 RPM
TURN MILL SPINDLE TAPER HOLE ............................ C6
COLUMN TURN MILL SPINDLE MOTOR .......................... 37 HORSEPOWER
TOOL STORAGE CAPACITY ................................... 76 POSITIONS
MAX TOOL DIAMETER ....................................... 2.7"
MAX TOOL DIAMETER WITHOUT ADJACENT TOOLS ................ 5.1"
MAX TOOL LENGTH ......................................... 15.7"
MAX TOOL MASS ........................................... 22 LB
LEFT/RIGHT SPINDLE DRIVE MOTOR .......................... 40/25 HORSEPOWER
FLOOR SPACE ................................. 307" X 113.4" X 114.3" TALL
MACHINE WEIGHT .............................. 52,340 LBS

EQUIPPED WITH:

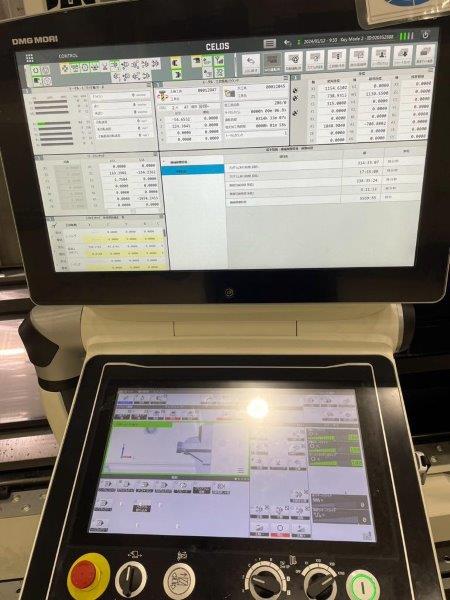

> DMG MORI B MAPPSV ERGOLINE TOUCH, MORI-POST ADVANCED MODE,
HIGH-SPEED FIXED CYCLE FUNCTION, DIAMETER/RADIUS DUNAMIC SWITCHING FUNC.,
INCLINED SURFACE MACHINING COMMAND, DXF IMPORT, AI COUNTOUR,COORDINATE ROTA.,
RE-THREADING, NURBS INTERPOLATION,TOOL CENTER POINT,SMOOTH,SPIRALCONICAL,

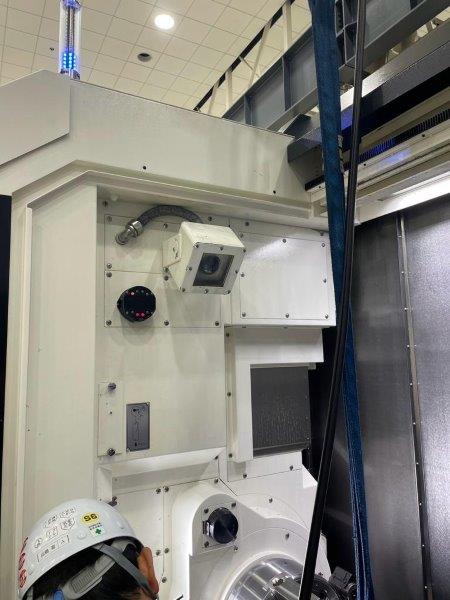

IN-FLIGH HD NETWORK CAMERA, 1ST/2ND SPINDLE
> SMW RX4-SELF-ALIGNING AUTOMATIC, CHIP CONVEYOR
> GLASS MAGNASCALE / X/B/Y/Z
> IN-MACHINE TOOL PRESETTER AUTOMATIC, INTERNAL MEASURING DEVICE RMP600

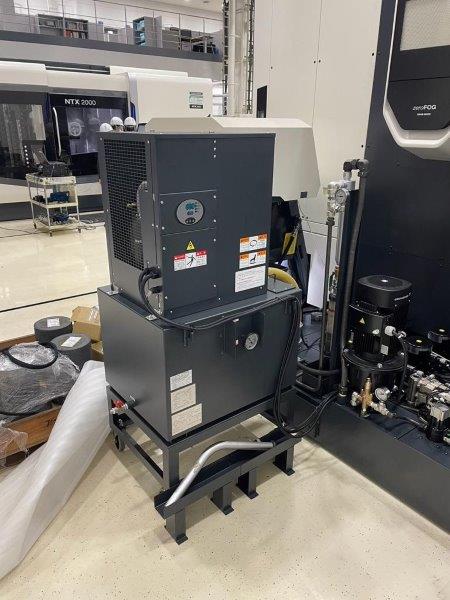

> COOLANT DEVICE 800/1100 W, TOOL SPINDLE THROUGH SPINDLE COOOLANT
> MIST COLLECTOR, ROTARY WINDOW, TOOLSTAR, COMPACTMASTER,
> GEAR SKIVING, GEARING, ECCENTRIC MACHINING, MULTITHREADING, COLUMN,
B ALTERNATING SPEED, INTERPOLATION TURNING,

> 1ST SPINDLE-12" KITAWAGA CHUCK,4.37" BORE,2nd,12",3.58" BORE

READY TO SHIP
