SPECIFICATIONS:
SWING OVER BED ........................ 23.6"
SWING OVER SADDLE ..................... 21.7"
RECOM. TURNING DIAMETER ............... 6.7"
MAX. TURNING DIAMETER ................. 13"
MAX. TURNING LENGTH ................... 20.9"
SPINDLE BORE DIAMETER ................. 2.1"
BAR WORKING DIAMETER .................. 1.8"
X-AXIS TRAVEL ......................... 9.8"
Z-AXIS TRAVEL ......................... 22.8"
Y-AXIS TRAVEL ......................... 4(+-2)
B-AXIS TRAVEL ......................... 22.8"
SPINDLE SPEEDS ........................ 6,000 RPM
SPINDLE NOSE .......................... A2#5
MIN.SPINDLE INDEX ANGLE (C-AXIS) ...... 0.001
NO. OF TOOLS STATIONS ................. 12
INDEXING TIME ......................... 0.1 SEC
ROTARY TOOL SPINDLE SPEED ............. 6,000 RPM
SUB SPINDLE SPEEDS .................... 6,000 RPM
RAPID TRAVERSE (X/Z) .................. 788/945
(Y/B) .................. 296/788
MAIN SPINDLE MOTOR .................... 10 HP
SUB SPINDLE MOTOR ..................... 10/7.5 HP
ROTARY TOOL MOTOR ..................... 5 HP
MACHINE DIMENSIONS ........... 81"H X 122"L X 67"W
MACHINE WEIGHT ........................ 10,500 LBS
EQUIPPED WITH:

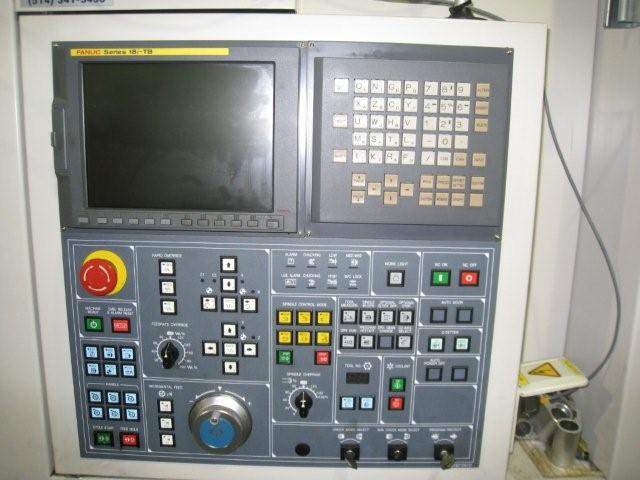

* FANUC 18ITB CNC CONTROL
* MTA SUPER 80 SERVO TYPE BAR FEEDER
* PARTS CATCHER & CONVEYOR
* 6-1/2" HYDRAULIC CHUCK

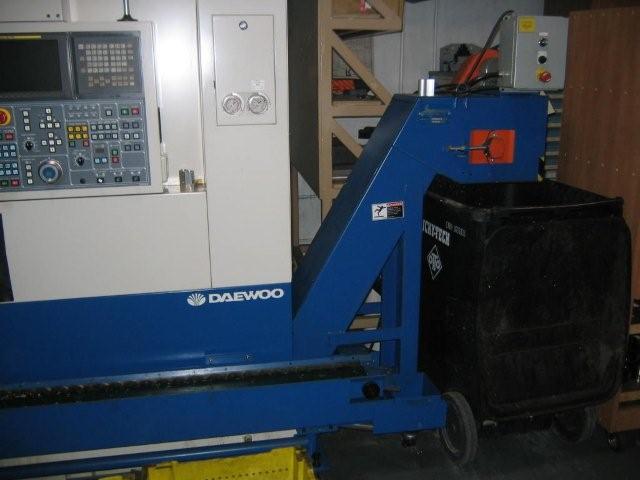

* SIDE DISCHARGE CHIP CONVEYOR
* COOLANT TANK
*** CONDITION LIKE NEW ***
