FICEP, No. VICTORY, FANUC-210IST, 2003,WEB PROBE,60' TABLE,Through Spindle Coola   Our stock number: 1100

FICEP, No. VICTORY, FANUC-210IST, 2003,WEB PROBE,60' TABLE,Through Spindle Coola

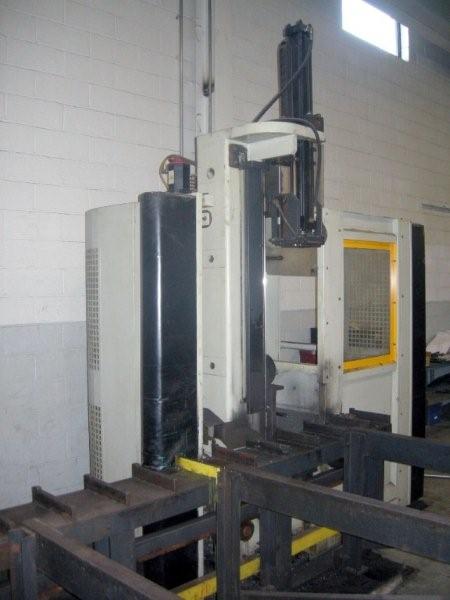

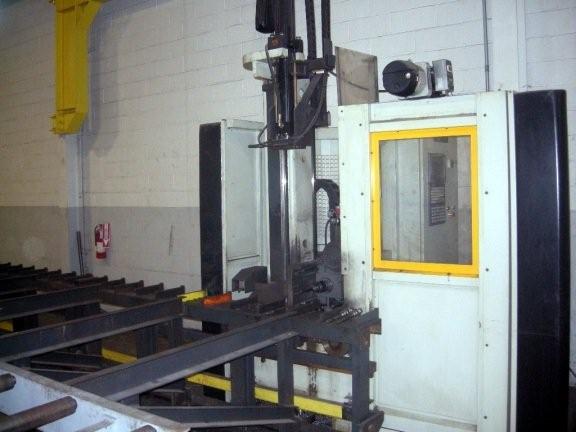

Click on picture below for larger version
FICEP, No. VICTORY, FANUC-210IST, 2003,WEB PROBE,60' TABLE,Through Spindle CoolaFICEP, No. VICTORY, FANUC-210IST, 2003,WEB PROBE,60' TABLE,Through Spindle CoolaFICEP, No. VICTORY, FANUC-210IST, 2003,WEB PROBE,60' TABLE,Through Spindle Coola
FICEP, No. VICTORY, FANUC-210IST, 2003,WEB PROBE,60' TABLE,Through Spindle CoolaFICEP, No. VICTORY, FANUC-210IST, 2003,WEB PROBE,60' TABLE,Through Spindle Coola

Designed for Structural Beams, Angles, Plate and
most Structural Steel Profiles


Section Volume of Beams, Max .......... 40" x 40"
Table Length .......................... 60'
Table Width ........................... 8'
Maximum Process Length (X-Axis) ....... 50'
Tower Positioning Speed (X-Axis) ...... 65 FPM
Drill Head Positioning Speed (Y-Axis).. 16 FPM
Drill Heads ........................... 1
Spindles .............................. 1
Drilling Diameter, Max ................ 1-9/16"
Drilling Thickness, Max ............... 1-9/16"
Spindle Stroke ........................ 12"
Spindle Motor ......................... 5.5 H P
Spindle Speeds ........................ 170 - 500 RPM
Total Vise Clamping Pressure .......... 10 Tons


EQUIPPED WITH:

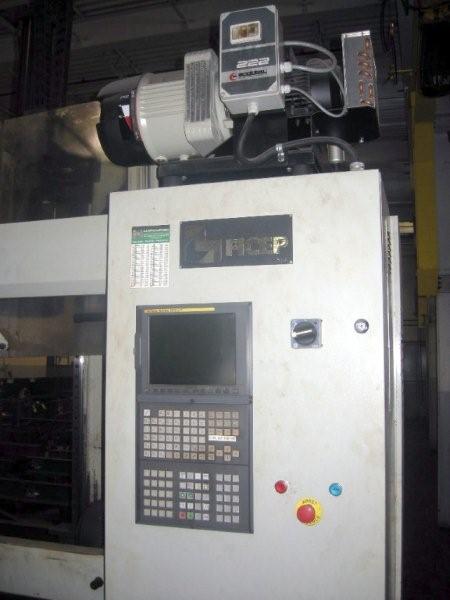

Fanuc 210is-T 2-Axis CNC Control

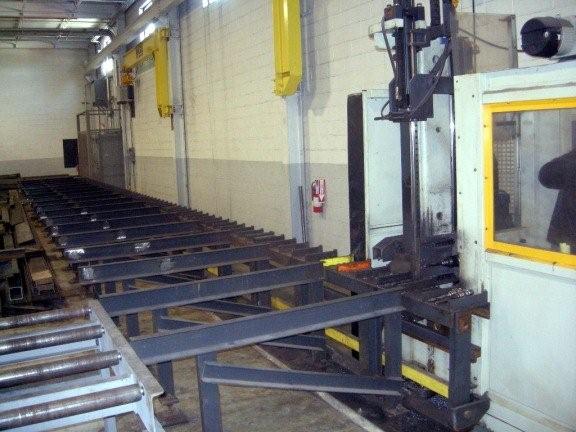

(6) 120" Heavy Duty Bed Sections

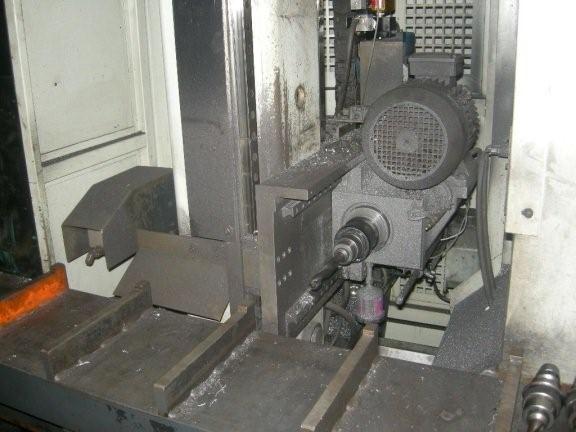

Quick Change Drill Bit Holders
Through Spindle Coolant
Air Compressor for Spindle Lube Mounted on Machine
5.5 HP Spindle Motor (460 Volt)
2 H P Hydraulic Power Unit
Web Probe
